| Per trovare il codice del prodotto desiderato, unire la sigla del raccordo (es. FL3, FL345, FL6...) alla colonna "Codice PBC". |
|
| Codice PBC | diametro tubo | filetto F |

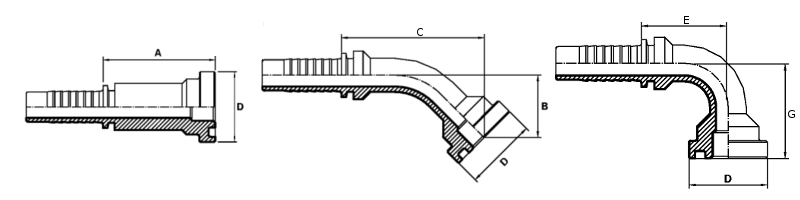

D | A | B | C | G | E |
| ....-13-13 | 1/2" | 1/2" | 30.2 | 49 | 23 | 63 | 43 | 39 | | ....-16-13 | 1/2" | 5/8" | 34 | 48 | 25 | 68 | 47 | 39 | | ....-19-13 | 1/2" | 3/4" | 38.1 | 52 | 28 | 68 | 50 | 39 | | ....-13-16 | 5/8" | 1/2" | 30.2 | 49 | 26 | 59 | 49 | 49 | | ....-16-16 | 5/8" | 5/8" | 34 | 49 | 30 | 63 | 52 | 49 | | ....-19-16 | 5/8" | 3/4" | 38.1 | 48 | 30 | 63 | 55 | 49 | | ....-13-19 | 3/4" | 1/2" | 30.2 | 47 | 28 | 63 | 52 | 57 | | ....-19-19 | 3/4" | 3/4" | 38.1 | 47 | 32 | 67 | 58 | 57 | | ....-25-19 | 3/4" | 1" | 44.5 | 50 | 35 | 70 | 62 | 57 | | ....-19-25 | 1" | 3/4" | 38.1 | 50 | 35 | 83 | 60 | 77 | | ....-25-25 | 1" | 1" | 44.5 | 50 | 32 | 86 | 64 | 77 | | ....-32-25 | 1" | 1 1/4" | 50.8 | 67 | 36 | 90 | 70 | 77 | | ....-25-32 | 1 1/4" | 1" | 44.5 | 57 | 36 | 96 | 82 | 89 | | ....-32-32 | 1 1/4" | 1 1/4" | 50.8 | 65 | 43 | 100 | 87 | 89 | | ....-38-32 | 1 1/4" | 1 1/2" | 60.3 | 70 | 44 | 101 | 88 | 89 | | ....-38-38 | 1 1/2" | 1 1/2" | 60.3 | 70 | 41 | 112 | 102 | 101 | | ....-50-38 | 1 1/2" | 2" | 71.4 | 72 | 52 | 123 | 118 | 101 | | ....-50-50 | 2" | 2" | 71.4 | 73 | 59 | 148 | 120 | 144 |
|
