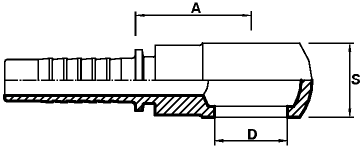

| Codice PBC | diametro tubo | filetto F |
D | S | A |
| G-RNR-04-05 | 3/16" | 1/8" | 10 | 10 | 19.5 |
| G-RNR-06-05 | 3/16" | 1/4" | 13.2 | 14 | 22.5 |
| G-RNR-04-06 | 1/4" | 1/8" | 10 | 10 | 24 |
| G-RNR-06-06 | 1/4" | 1/4" | 13.2 | 14 | 23 |
| G-RNR-10-06 | 1/4" | 3/8" | 16.7 | 17 | 26.5 |
| G-RNR-13-06 | 1/4" | 1/2" | 21 | 22 | 32.5 |
| G-RNR-06-08 | 5/16" | 1/4" | 13.2 | 14 | 24 |
| G-RNR-10-08 | 5/16" | 3/8" | 16.7 | 17 | 26.5 |
| G-RNR-13-08 | 5/16" | 1/2" | 21 | 22 | 27.5 |
| G-RNR-06-10 | 3/8" | 1/4" | 13.2 | 14 | 31.5 |
| G-RNR-10-10 | 3/8" | 3/8" | 16.7 | 17 | 26.5 |
| G-RNR-13-10 | 3/8" | 1/2" | 21 | 22 | 27.5 |
| G-RNR-10-13 | 1/2" | 3/8" | 16.7 | 17 | 31 |
| G-RNR-13-13 | 1/2" | 1/2" | 21 | 22 | 33 |
| G-RNR-16-13 | 1/2" | 5/8" | 23.3 | 25 | 32.5 |
| G-RNR-19-13 | 1/2" | 3/4" | 26.5 | 30 | 34.5 |
| G-RNR-16-16 | 5/8" | 5/8" | 23.3 | 25 | 32.5 |
| G-RNR-19-16 | 5/8" | 3/4" | 26.5 | 30 | 34.5 |
| G-RNR-19-19 | 3/4" | 3/4" | 26.5 | 30 | 35 |
| G-RNR-25-19 | 3/4" | 1" | 33.4 | 38 | 48 |
| G-RNR-25-25 | 1" | 1" | 33.4 | 38 | 43 |
| G-RNR-32-32 | 1 1/4" | 1 1/4" | - | - | - |
