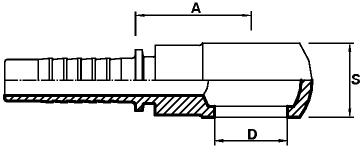

| Codice PBC | diametro tubo | filetto F |
D | S | A |
| G-RNM-10x1-05 | 3/16" | M10x1 | 10.1 | 10 | 20 |
| G-RNM-12x1.5-05 | 3/16" | M12x1.5 | 12.1 | 12 | 21 |
| G-RNM-14x1.5-05 | 3/16" | M14x1.5 | 14.1 | 14 | 23 |
| G-RNM-10x1-06 | 1/4" | M10x1 | 10.1 | 10 | 24 |
| G-RNM-12x1.5-06 | 1/4" | M12x1.5 | 12.1 | 11 | 23 |
| G-RNM-14x1.5-06 | 1/4" | M14x1.5 | 14.1 | 14 | 23 |
| G-RNM-16x1.5-06 | 1/4" | M16x1.5 | 16.1 | 17 | 25 |
| G-RNM-18x1.5-06 | 1/4" | M18x1.5 | 18.1 | 20 | 29 |
| G-RNM-12x1.5-08 | 5/16" | M12x1.5 | 12.1 | 12 | 23 |
| G-RNM-14x1.5-08 | 5/16" | M14x1.5 | 14.1 | 14 | 24.5 |
| G-RNM-16x1.5-08 | 5/16" | M16x1.5 | 16.1 | 17 | 27 |
| G-RNM-18x1.5-08 | 5/16" | M18x1.5 | 18.1 | 20 | 29 |
| G-RNM-20x1.5-08 | 5/16" | M20x1.5 | 20.1 | 22 | 28 |
| G-RNM-22x1.5-08 | 5/16" | M22x1.5 | 22.1 | 22 | 28 |
| G-RNM-14x1.5-10 | 3/8" | M14x1.5 | 14.1 | 14 | 27 |
| G-RNM-16x1.5-10 | 3/8" | M16x1.5 | 16.1 | 17 | 27 |
| G-RNM-18x1.5-10 | 3/8" | M18x1.5 | 18.1 | 20 | 28 |
| G-RNM-20x1.5-10 | 3/8" | M20x1.5 | 20.1 | 22 | 28.5 |
| G-RNM-22x1.5-13 | 1/2" | M22x1.5 | 22.1 | 22 | 28.5 |
| G-RNM-18x1.5-13 | 1/2" | M18x1.5 | 18.1 | 20 | 30 |
| G-RNM-20x1.5-13 | 1/2" | M20x1.5 | 20.1 | 22 | 34 |
| G-RNM-22x1.5-13 | 1/2" | M22x1.5 | 22.1 | 22 | 34 |
| G-RNM-26x1.5-13 | 1/2" | M26x1.5 | 26.5 | 30 | 34.5 |
| G-RNM-22x1.5-16 | 5/8" | M22x1.5 | 22.1 | 22 | 34 |
| G-RNM-26x1.5-16 | 5/8" | M26x1.5 | 26.5 | 30 | 34.5 |
| G-RNM-26x1.5-19 | 3/4" | M26x1.5 | 26.5 | 30 | 35 |
| G-RNM-30x1.5-19 | 3/4" | M30x1.5 | 30.1 | 36 | 41.5 |
| G-RNM-30x1.5-25 | 1" | M30x1.5 | 30.1 | 36 | 41.5 |
