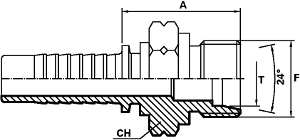

| CES Maschio metrico serie pesante svasato 24° |
 |
| Codice PBC | diametro tubo | filetto F | T | CH | A |
| CES-06S-05 | 3/16" | M14x1.5 | 6 | 14 | 24 |
| CES-08S-05 | 3/16" | M16x1.5 | 8 | 17 | 25 |
| CES-06S-06 | 1/4" | M14x1.5 | 6 | 14 | 24 |
| CES-08S-06 | 1/4" | 16x1.5 | 8 | 17 | 25 |
| CES-10S-06 | 1/4" | M18x1.5 | 10 | 19 | 25 |
| CES-12S-06 | 1/4" | M20x1.5 | 12 | 22 | 27 |
| CES-10S-08 | 5/16" | M18x1.5 | 10 | 19 | 25 |
| CES-12S-08 | 5/16" | M20x1.5 | 12 | 22 | 26.5 |
| CES-10S-10 | 3/8" | M18x1.5 | 10 | 19 | 26 |
| CES-12S-10 | 3/8" | M20x1.5 | 12 | 22 | 27 |
| CES-14S-10 | 3/8" | M22x1.5 | 14 | 24 | 29 |
| CES-14S-13 | 1/2" | M22x1.5 | 14 | 24 | 30 |
| CES-16S-13 | 1/2" | M24x1.5 | 16 | 27 | 31 |
| CES-20S-16 | 5/8" | M30x2 | 20 | 32 | 33 |
| CES-20S-19 | 3/4" | M30x2 | 20 | 32 | 34 |
| CES-25S-19 | 3/4" | M36x2 | 25 | 38 | 36 |
| CES-25S-25 | 1" | M36x2 | 25 | 38 | 38.5 |
| CES-30S-25 | 1" | M42x2 | 30 | 46 | 42 |
| CES-30S-32 | 1 1/4" | M42x2 | 30 | 46 | 42 |
| CES-38S-32 | 1 1/4" | M52x2 | 38 | 55 | 46 |
| CES-38S-38 | 1 1/2" | M52x2 | 38 | 55 | 46 |
