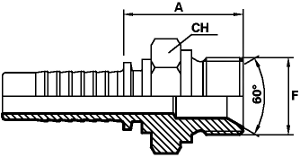

| AGR Maschio GAS svasato 60° |
 |
| Codice PBC | diametro tubo | filetto F | CH | A |
| AGR-04-05 | 3/16" | 1/8" | 14 | 20.5 |
| AGR-06-05 | 3/16" | 1/4" | 19 | 26 |
| AGR-04-06 | 1/4" | 1/8" | 14 | 20.5 |
| AGR-06-06 | 1/4" | 1/4" | 19 | 27 |
| AGR-10-06 | 1/4" | 3/8" | 22 | 29 |
| AGR-13-06 | 1/4" | 1/2" | 27 | 32 |
| AGR-06-08 | 5/16" | 1/4" | 19 | 27 |
| AGR-10-08 | 5/16" | 3/8" | 22 | 29 |
| AGR-10-08 | 5/16" | 3/8" | 22 | 29 |
| AGR-06-10 | 3/8" | 1/4" | 19 | 27 |
| AGR-10-10 | 3/8" | 3/8" | 22 | 29 |
| AGR-13-10 | 3/8" | 1/2" | 27 | 32 |
| AGR-10-13 | 1/2" | 3/8" | 19 | 29 |
| AGR-13-13 | 1/2" | 1/2" | 27 | 33 |
| AGR-16-13 | 1/2" | 5/8" | 30 | 34.5 |
| AGR-19-13 | 1/2" | 3/4" | 32 | 36 |
| AGR-13-16 | 5/8" | 1/2" | 27 | 33 |
| AGR-16-16 | 5/8" | 5/8" | 30 | 34.5 |
| AGR-19-16 | 5/8" | 3/4" | 32 | 36 |
| AGR-13-19 | 3/4" | 1/2" | 27 | 34 |
| AGR-16-19 | 3/4" | 5/8" | 30 | 36 |
| AGR-19-19 | 3/4" | 3/4" | 32 | 37 |
| AGR-25-19 | 3/4" | 1" | 38 | 40 |
| AGR-19-25 | 1" | 3/4" | 32 | 38 |
| AGR-25-25 | 1" | 1" | 38 | 40 |
| AGR-32-25 | 1" | 1 1/4" | 50 | 45 |
| AGR-32-32 | 1 1/4" | 1 1/4" | 50 | 46 |
| AGR-38-32 | 1 1/4" | 1 1/2" | 55 | 46 |
| AGR-38-38 | 1 1/2" | 1 1/2" | 55 | 46 |
| AGR-50-38 | 1 1/2" | 2" | 70 | 53 |
| AGR-50-50 | 2" | 2" | 70 | 54 |
