Flange a saldare di testa tubo metrico

SERIE 3000

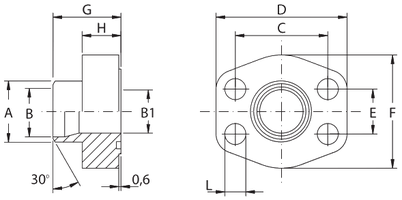

dim	codice	A	B	B1	C	D	E	F	G	H	L	vite-m	vite-u	or	peso	WP
1/2	AFS080SRE20	20	14	13	38.1	57	17.48	46	35	16	9	M8x30	5/16x1"1/4	4075	0.24	345
1/2	AFS080SRE22	20	16	13	38.1	57	17.48	46	35	16	9	M8x30	5/16x1"1/4	4075	0.24	345
3/4	AFS100SRE28	28	22	19	47.63	65	22.23	50	36	18	11	M10x35	3/8x1"1/2	4100	0.35	345
1	AFS102SRE35	35	27	25	52.37	70	26.19	55	38	18	11	M10x35	3/8x1"1/2	4131	0.46	345
1 1/4	AFS104SRE42	43	36	31	58.72	79	30.18	68	41	21	11.5	M10x40	7/16x1"3/4	4150	0.64	276
1 1/2	AFS106STRE48	49	42	38	69.85	93	35.71	78	45	25	13.5	M12x45	1/2x1"3/4	4187	0.98	207
2	AFS108STRE60	61	53	49	77.77	102	42.88	90	45	25	13.5	M12x45	1/2x1"3/4	4225	1.14	207
2 1/2	AFS110STRE76	77	70	62	88.9	114	50.8	105	50	25	13.5	M12x45	1/2x1"3/4	4275	1.55	172
3	AFS112STRE88	90	82	74	106.38	134	61.93	124	51	26	17.5	M16x50	5/8x2"	4337	2.33	138
4	AFS116STRE114	115	107	102	130.18	162	77.77	146	48	26	17.5	M16x50	5/8x2"	4437	2.85	34
5	AFS118STREH139	140.2	131	120	152.4	184	92.08	180	50	28	17.5	M16x50	5/8x2"	4537	4	34

SERIE 6000

dim

codice

A

B

B1

C

D

E

F

G

H

L

vite-m

vite-u

or

peso

WP

1 1/2

AFS405SRE60

61

40

38

79.38

112

36.5

94

56

28

17

M16x50

5/8x2"

4187

1.65

414
