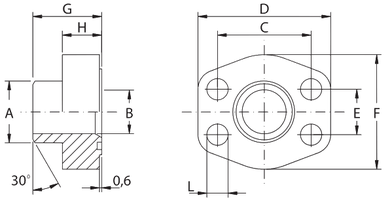

Flange a saldare di testa tubo metrico foro cilindrico

SERIE 3000
dim	codice	A	B	C	D	E	F	G	H	L	vite-m	vite-u	or	peso	WP
3/4	AFS100SRE25	25	19	47.63	65	22.23	50	36	18	11	M10x35	3/8x1"1/2	4100	0.35	345
1	AFS102SRE30	30	22	52.37	70	26.19	55	38	18	11	M10x35	3/8x1"1/2	4131	0.41	345
1 1/4	AFS104SRE38	38	30	58.72	79	30.18	68	41	21	11.5	M10x40	7/16x1"3/4	4150	0.64	276
1 1/2	AFS106SRE42	42	36	69.85	93	35.71	78	45	25	13.5	M12x45	1/2x1"3/4	4187	0.98	207
1 1/2	AFS106SRE48	49	38	69.85	93	35.71	78	45	25	13.5	M12x45	1/2x1"3/4	4187	0.98	207
2	AFS108SRE60	61	49	77.77	102	42.88	90	45	25	13.5	M12x45	1/2x1"3/4	4225	1.14	207
2	AFS108SRTE48	49	42	77.77	102	42.88	90	45	25	13.5	M12x45	1/2x1"3/4	4225	1.14	207
2 1/2	AFS110SRE76	77	62	88.9	114	50.8	105	50	25	13.5	M12x45	1/2x1"3/4	4275	1.55	172
3	AFS112SRE76	77	62	106.38	134	61.93	124	51	26	17.5	M16x50	5/8x2"	4337	2.33	138
3	AFS112SRTE76	77	70	106.38	134	61.93	124	51	26	17.5	M16x50	5/8x2"	4337	2.33	138
3 1/2	AFS114STRE76	77	70	120.365	152	69.85	136	48	26	17.5	M16x50	5/8x2"	4387	2.4	34
3 1/2	AFS114STRE88	90	82	120.65	152	69.85	136	48	26	17.5	M16x50	5/8x2"	4387	2.4	34
4	AFS116STRE76	77	70	130.18	162	77.77	146	48	26	17.5	M16x50	5/8x2"	4437	2.85	34
4	AFS116STRE88	90	82	130.18	162	77.77	146	48	26	17.5	M16x50	5/8x2"	4437	2.85	34

SERIE 6000

dim	codice	A	B	C	D	E	F	G	H	L	vite-m	vite-u	or	peso	WP
1/2	AFS401SRE20	20	14	40.49	57	18.24	46	34	16	9	M8x30	5/16x1"1/4	4075	0.24	414
3/4	AFS402SRE20	20	14	50.8	71	23.8	55	35	21	11	M10x40	3/8x1"1/2	4100	0.48	414
3/4	AFS402SRE25	25	17	50.8	71	23.8	55	35	21	11	M10x40	3/8x1"1/2	4100	0.48	414
1	AFS403SRE25	25	19	57.15	81	27.76	65	42	25	13	M12x45	7/16x1"3/4	4131	0.64	414
1	AFS403SRE30	30	22	57.15	81	27.76	65	42	25	13	M12x45	7/16x1"3/4	4131	0.64	414
1 1/4	AFS404SRE38	38	28	66.68	95	31.75	78	44	25	15	M14x45	1/2x1"3/4	4150	1	414
1 1/4	AFS404SRE38B26	38	26	66.68	95	31.75	78	44	25	15	M14x45	1/2x1"3/4	4150	1	414
1 1/2	AFS405SRE38	38	28	79.38	112	36.5	94	56	28	17	M16x50	5/8x2"	4187	1.69	414
1 1/2	AFS405SRE48B32	48.6	32	79.38	112	36.5	94	56	28	17	M16x50	5/8x2"	4187	1.69	414
2	AFS406SRE60	61	40	96.82	134	44.45	114	65	37	21	M20x70	3/4x2"1/2	4225	2.86	414
2 1/2	AFS507SRE76	76.6	50	123.8	180	58.7	152	80	45	26	M24x80	-	4275	6.4	414
