Flange a saldare di tasca tubo metrico

SERIE 3000

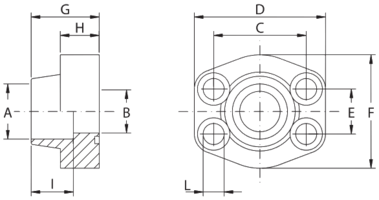

dim	codice	A	B	C	D	E	F	G	H	I	L	vite-m	vite-u	or	peso	WP
1/2	AFS080SA20	20.3	13	38.1	57	17.48	46	36	16	19	9	M8x30	5/16x1"1/4	4075	0.25	345
3/4	AFS100SA25	25.3	19	49.63	65	22.23	50	36	18	19	11	M10x35	3/8x1"1/2	4100	0.39	345
1	AFS102SA30	30.3	25	52.37	70	26.19	55	38	18	19	11	M10x35	3/8x1"1/2	4131	0.46	345
1 1/4	AFS104SA38	38.3	32	58.72	79	30.18	68	41	21	22	11.5	M10x40	7/16x1"3/4	4150	0.66	276
1 1/2	AFS106SA50	50.5	38	69.85	93	35.71	78	45	25	24	13.5	M12x45	1/2x1"3/4	4187	1.05	207

SERIE 6000

dim	codice	A	B	C	D	E	F	G	H	I	L	vite-m	vite-u	or	peso	WP
1/2	AFS401SA20	20.3	13	40.49	57	18.24	46	36	16	19	9	M8x30	5/16x1"1/4	4075	0.25	414
3/4	AFS402SA25	25.3	19	50.8	71	23.8	55	35	21	22	11	M10x40	3/8x1"1/2	4100	0.5	414
1	AFS403SA30	30.3	25	57.15	81	27.76	65	42	25	22	13	M12x45	7/16x1"3/4	4131	0.76	414
1 1/4	AFS404SA38	38.3	32	66.68	95	31.75	78	45	27	25	15	N14x45	1/2x1"3/4	4150	1.2	414
1 1/4	AFS404SA38B26	38.3	26	66.68	95	31.75	78	45	27	25	15	M14x45	-	4150	1.25	414
1 1/4	AFS404SA38B28	38.3	28	66.68	95	31.75	78	45	27	25	15	M14x45	-	4150	1.25	414
1 1/2	AFS405SAA50	50.5	38	79.38	112	36.5	94	50	30	28	17	M16x50	5/8x2"	4187	1.9	414
