Flange a saldare di tasca

SERIE 3000

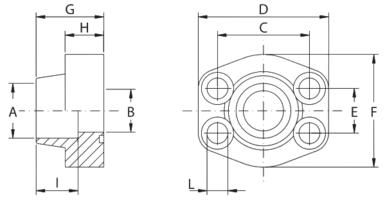

dim	codice	A	B	C	D	E	F	G	H	I	L	vite-m	vite-u	or	peso	WP
1/2	AFS080S	21.6	13	38.1	57	17.48	46	36	16	19	9	M8x30	5/16x1"1/4	4075	0.25	345
1/2	AFS080S038	17.5	13	38.1	57	17.48	46	36	16	19	9	M8x30	5/16x1"1/4	4075	0.25	345
3/4	AFS100S	27.2	19	47.63	65	22.23	50	36	18	19	11	M10x35	3/8x1"1/2	4100	0.37	345
1	AFS102S	34.0	25	52.37	70	26.19	55	38	18	19	11	M10x35	3/8x1"1/2	4131	0.45	345
1 1/4	AFS104S	42.8	32	58.72	79	30.18	68	41	21	22	11.5	M10x40	7/16x1"3/4	4150	0.66	276
1 1/2	AFS106S	48.6	38	69.85	93	35.71	78	45	25	24	13.5	M12x45	1/2x1"3/4	4187	1.03	207
2	AFS108S	61.0	51	77.77	102	42.88	90	45	25	26	13.5	M12x45	1/2x1"3/4	4225	1.17	207
2 1/2	AFS110S	76.6	63	88.9	114	50.8	105	50	25	30	13.5	M12x45	1/2x1"3/4	4275	1.53	172
3	AFS112S	90.5	73	106.38	134	61.93	124	50	27	34	17.5	M16x50	5/8x2"	4337	2.09	138
3 1/2	AFS114S	103.0	89	120.65	152	69.85	136	48	27	34	17.5	M16x50	5/8x2"	4387	2.35	34
4	AFS116S	115.5	99	130.18	162	77.77	146	48	27	34	17.5	M16x50	5/8x2"	4437	2.7	34
5	AFS118S	142.0	120	152.4	184	92.08	180	50	28	28	17.5	M16x50	5/8x2"	4537	5.8	34

SERIE 6000

dim	codice	A	B	C	D	E	F	G	H	I	L	vite-m	vite-u	or	peso	WP
1/2	AFS401S012	21.6	13	40.49	57	18.24	46	36	16	19	9	M8x30	5/16x1"1/4	4075	0.25	414
1/2	AFS401S038	17.5	13	40.49	57	18.24	46	36	16	19	9	M8x30	5/16x1"1/4	4075	0.27	414
3/4	AFS402S	27.2	19	50.8	71	23.8	55	35	21	22	11	M10x40	3/8x1"1/2	4100	0.51	414
1	AFS403S	34.0	25	57.15	81	27.76	65	42	25	22	13	M12x45	7/16x1"3/4	4131	0.8	414
1 1/4	AFS404S	42.8	32	66.68	95	31.75	78	45	27	25	15	M14x45	1/2x1"3/4	4150	1.13	414
1 1/2	AFS405S	48.6	38	79.38	112	36.5	94	50	30	28	17	M16x50	5/8x2"	4187	1.86	414
2	AFS406S	61.0	51	96.82	134	44.45	114	65	37	24	21	M20x70	3/4x2"1/2	4225	3.3	414
2 1/2	AFS507S	76.6	63	123.8	180	58.7	152	80	45	32	26	M24x80	-	4275	6.6	414
3	AFS508S	90.5	73	152.4	208	71.4	178	90	55	30	33	M30x100	-	4337	-	414
