Flange piatte a saldare di tasca

SERIE 3000

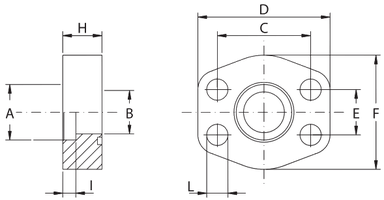

dim	codice	A	B	C	D	E	F	H	I	L	vite-m	or	peso	WP
1/2	AFC080S	22.5	15	38.1	56	17.48	46	14	3	9	M8x25	4075	0.12	40
3/4	AFC100S	28.5	20	47.63	65	22.23	50	12	4	11	M10x30	4100	0.2	40
1	AFC102S	35.5	29	52.37	70	26.19	55	12	4	11	M10x30	4131	0.25	40
1 1/4	AFC104S	42.5	34	58.72	79	30.18	68	12	4	11.5	M10x30	4150	0.28	40
1 1/2	AFC106S	49.0	42	69.85	93	35.71	78	15	4	13.5	M12x35	4187	0.5	40
2	AFC108S	61.0	53	77.77	102	42.88	90	15	4	13.5	M12x35	4225	0.59	40
2 1/2	AFC110S	77.0	64	88.9	114	50.8	105	15	4	13.5	M12x35	4275	0.72	40
3	AFC112S	90.0	80	106.38	134	61.93	124	20	5	17.5	M16x50	4337	1.25	40
3 1/2	AFC114S	103.0	93	120.65	152	69.85	136	20	5	17.5	M16x50	4387	1.5	40
4	AFC116S	116.0	105	130.18	162	77.77	146	25	6	17.5	M16x50	4437	2.15	40
5	AFC118S	141.0	126	152.4	190	92.08	170	28	8	17.5	M16x50	4537	3	40
