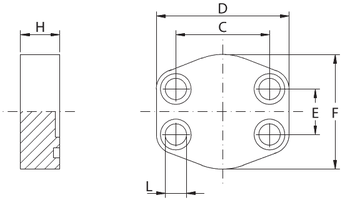

| Flange cieche |
|
 |
SERIE 3000 |
| dim | codice | C | D | E | F | H | L | vite-m | vite-u | or | peso | WP |
| 1/2 | AFC080 | 38.1 | 56 | 17.48 | 46 | 16 | 9 | M8x30 | 5/16x1"1/4 | 4075 | 0.24 | 345 |
| 3/4 | AFC100 | 47.63 | 65 | 17.48 | 46 | 16 | 9 | M10x35 | 3/8x1"1/2 | 4100 | 0.3 | 345 |
| 1 | AFC102 | 52.37 | 70 | 26.19 | 60 | 19 | 11 | M10x35 | 3/8x1"1/2 | 4131 | 0.42 | 345 |
| 1 1/4 | AFC104 | 58.72 | 79 | 30.18 | 68 | 18 | 11.5 | M10x40 | 7/16x1"3/4 | 4150 | 0.55 | 276 |
| 1 1/2 | AFC106 | 69.85 | 93 | 35.71 | 78 | 20 | 13.5 | M12x45 | 1/2x1"3/4 | 4187 | 0.82 | 207 |
| 2 | AFC108 | 77.77 | 102 | 42.88 | 90 | 20 | 13.5 | M12x45 | 1/2x1"3/4 | 4225 | 1.08 | 207 |
| 2 1/2 | AFC110 | 88.9 | 114 | 50.8 | 105 | 20 | 13.5 | M12x45 | 1/2x1"3/4 | 4275 | 1.4 | 172 |
| 3 | AFC112 | 106.38 | 134 | 61.93 | 124 | 24 | 17.5 | M16x50 | 5/8x2" | 4337 | 2.38 | 138 |
| 3 1/2 | AFC114 | 120.65 | 152 | 69.85 | 136 | 22 | 17.5 | M16x50 | 5/8x2" | 4387 | 2.91 | 34 |
| 4 | AFC116 | 130.18 | 162 | 77.77 | 146 | 25 | 17.5 | M16x50 | 5/8x2" | 4437 | 3.98 | 34 |
| 5 | AFC118 | 152.4 | 190 | 92.08 | 170 | 28 | 17.5 | M16x50 | 5/8x2" | 4537 | 4 | 34 |
SERIE 6000 |
| dim | codice | C | D | E | F | H | L | vite-m | vite-u | or | peso | WP |
| 1/2 | AFC401 | 40.49 | 56 | 18.24 | 48 | 16 | 9 | M8x30 | 5/16x1"1/4 | 4075 | 0.24 | 414 |
| 3/4 | AFC402 | 50.8 | 71 | 23.8 | 60 | 19 | 11 | M10x35 | 3/8x1"1/2 | 4100 | 0.42 | 414 |
| 1 | AFC403 | 57.15 | 81 | 27.76 | 70 | 24 | 13 | M12x45 | 7/16x1"3/4 | 4131 | 0.77 | 414 |
| 1 1/4 | AFC404 | 66.68 | 95 | 31.75 | 78 | 27 | 15 | M14x45 | 1/2x1"3/4 | 4150 | 1.16 | 414 |
| 1 1/2 | AFC405 | 79.38 | 112 | 36.5 | 94 | 30 | 17 | M16x50 | 5/8x2" | 4187 | 1.8 | 414 |
| 2 | AFC406 | 96.82 | 134 | 44.45 | 114 | 30 | 21 | M20x60 | 3/4x2"1/2 | 4225 | 2.57 | 414 |
| 2 1/2 | AFC507 | 123.8 | 180 | 58.7 | 152 | 45 | 26 | M24x80 | - | 4275 | - | 414 |
| 3 | AFC508 | 152.4 | 208 | 71.4 | 178 | 55 | 33 | M30x100 | - | 4337 | - | 414 |
