PBC srl - Oleodinamica Molteno

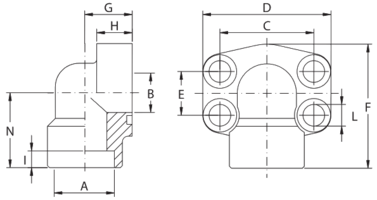

Flange a 90° a saldare di tasca

SERIE 3000
dim	codice	A	B	C	D	E	F	G	H	I	L	N	vite-m	vite-u	or	peso	WP
1/2	AFS08090S	21.6	13	38.1	54	17.48	60	20	16	10	9	37	M8x30	5/16x1"1/4	4075	0.28	345
1/2	AFS08090S038	17.5	13	38.1	54	17.48	60	20	16	10	9	37	M8x30	5/16x1"1/4	4075	0.29	345
3/4	AFS10090S	27.2	19	47.63	65	22.23	63	24	18	10	11	38	M10x35	3/8x1"1/2	4100	0.45	345
1	AFS10290S	34.0	25	52.37	70	26.19	70	28	19	12	11	43	M10x35	3/8x1"1/2	4131	0.56	345
1 1/4	AFS10490S	42.8	32	58.72	79	30.18	85	34	21	14	11.5	51	M10x40	7/16x1"3/4	4150	0.89	276
1 1/2	AFS10690S	48.6	38	69.85	93	35.71	95	38	25	16	13.5	56	M12x45	1/2x1"3/4	4187	1.18	207
2	AFS10890S	61.0	51	77.77	110	42.88	110	42	25	18	13.5	65	M12x45	1/2x1"3/4	4225	2.06	207

SERIE 6000

dim	codice	A	B	C	D	E	F	G	H	I	L	N	vite-m	vite-u	or	peso	WP
1/2	AFS40190S012	21.6	13	40.49	54	18.24	60	20	16	10	9	37	M8x30	5/16x1"1/4	4075	0.28	414
1/2	AFS40190S038	17.5	13	40.49	54	18.24	60	20	16	10	9	37	M8x30	5/16x1"1/4	4075	0.29	414
3/4	AFS40290S	27.2	19	50.8	70	23.8	70	28	19	12	11	43	M10x40	3/8x1"1/2	4100	0.69	414
1	AFS40390S	34.0	25	57.15	79	27.76	85	34	21	14	13	51	M12x45	7/16x1"3/4	4131	1.11	414
1 1/4	AFS40490S	42.8	32	66.68	93	31.75	95	38	25	16	15	56	M14x45	1/2x1"3/4	4150	1.45	414
1 1/2	AFS40590S	48.6	38	79.38	110	36.5	110	42	25	18	17	65	M16x50	5/8x2"	4187	2.75	414
2	AFS40690S	61.0	51	96.82	134	44.45	432	45	35	25	21	75	N20x70	3/4x2"1/2	4225	3.85	414
