PBC srl - Oleodinamica Molteno

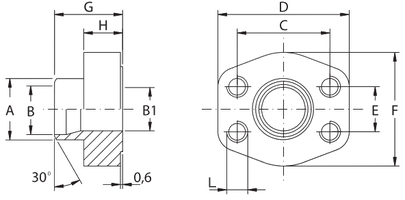

Controflange a saldare di testa tubo metrico

SERIE 3000
dim	codice	A	B	B1	C	D	E	F	G	H	L	L-unc	peso	WP
1/2	GFS080SRE20	20	14	13	38.1	57	17.48	46	35	16	M8	5/16	0.25	345
1/2	GFS080SRE22	20	16	13	38.1	57	17.48	46	35	16	M8	5/16	0.25	345
3/4	GFS100SRE28	28	22	19	47.63	65	22.23	50	36	18	M10	3/8	0.39	345
1	GFS102SRE35	35	27	25	52.37	70	26.19	55	38	18	M10	3/8	0.45	345
1 1/4	GFS104SRE42	43	36	31	58.72	79	30.18	68	41	21	M10	7/16	0.69	276
1 1/2	GFS106STRE48	49	42	38	69.85	93	35.71	78	45	25	M12	1/2	1.05	207
2	GFS108STRE60	61	53	49	77.77	102	42.88	90	45	25	M12	1/2	1.22	207
2 1/2	GFS110STRE76	77	70	62	88.9	114	50.8	105	50	25	M12	1/2	1.63	172
3	GFS112STRE88	90	82	74	106.38	134	61.93	124	51	26	M16	5/8	2.42	138
4	GFS116STRE114	115	107	102	130.18	162	77.77	146	48	26	M16	5/8	2.94	34
5	GFS118STREH139	140.2	131	120	152.4	184	92.08	180	50	28	M16	5/8	4	34

SERIE 6000

dim

codice

A

B

B1

C

D

E

F

G

H

L

L-unc

peso

WP

1 1/2

GFS405SRE60

61

40

38

79.38

112

36.5

94

56

28

M8

5/16

1.76

414
