PBC srl - Oleodinamica Molteno

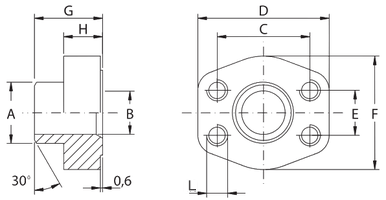

Controflange a saldare di testa tubo metrico foro cilindrico

SERIE 3000
dim	codice	A	B	C	D	E	F	G	H	L	L-unc	peso	WP
3/4	GFS100SRE25	25	19	47.63	65	22.25	50	36	18	M10	3/8	0.39	345
1	GFS102SRE30	30	22	52.37	70	26.19	55	38	18	M10	3/8	0.45	345
1 1/4	GFS104SRE38	38	30	58.72	79	30.18	68	41	21	M10	7/16	0.69	276
1 1/2	GFS106SRE42	42	36	69.85	93	35.71	78	45	25	M12	1/2	1.05	207
1 1/2	GFS106SRE48	49	38	69.85	93	35.71	78	45	25	M12	1/2	1.05	207
2	GFS108SRE60	61	49	77.77	102	42.88	90	45	25	M12	1/2	1.22	207
2	GFS108STRE48	49	42	77.77	102	42.88	90	45	25	M12	1/2	1.22	207
2 1/2	GFS110SRE76	77	62	88.9	114	50.8	105	50	25	M12	1/2	1.63	172
3	GFS112SRE76	77	62	106.38	134	61.93	124	51	26	M16	5/8	2.33	138
3	GFS112STRE76	77	70	106.38	134	61.93	124	51	26	M16	5/8	2.33	138
3 1/2	GFS114STRE76	77	70	120.65	152	69.85	136	48	26	M16	5/8	2.49	34
3 1/2	GFS114STRE88	90	82	120.65	152	69.85	136	48	26	M16	5/8	2.49	34
4	GFS116STRE76	77	70	130.18	162	77.77	146	48	26	M16	5/8	2.85	34
4	GFS116STRE88	90	82	130.18	162	77.77	146	48	26	M16	5/8	2.85	34

SERIE 6000

dim	codice	A	B	C	D	E	F	G	H	L	L-unc	peso	WP
1/2	GFS401SRE20	20	14	40.49	57	18.24	46	34	16	M8	5/16	0.25	414
3/4	GFS402SRE20	20	14	50.8	71	23.8	55	35	21	M10	3/8	0.52	414
3/4	GFS402SRE25	25	17	50.8	71	23.8	55	35	21	M10	3/8	0.52	414
1	GFS403SRE25	25	19	57.15	81	27.76	65	42	25	M12	7/16	0.7	414
1	GFS403SRE30	30	22	57.15	81	27.76	65	42	25	M12	7/16	0.7	414
1 1/4	GFS404SRE38	38	28	66.68	95	31.75	78	44	25	M14	1/2	1.08	414
1 1/4	GFS404SRE38B26	38	26	66.68	95	31.75	78	44	25	M14	1/2	1.08	414
1 1/2	GFS405SRE38	38	28	79.38	112	36.5	94	56	28	M16	5/8	1.76	414
1 1/2	GFS405SRE48B32	48.6	32	79.38	112	36.5	94	56	28	M16	5/8	1.76	414
2	GFS406SRE60	61	40	96.82	134	44.45	114	65	37	M20	3/4	2.98	414
2 1/2	GFS507SRE76	76.6	50	123.8	180	58.7	152	80	45	M24	-	6.5	414
