| Controflange a saldare di tasca tubo metrico |
 |
SERIE 3000 | ||||||||||||||

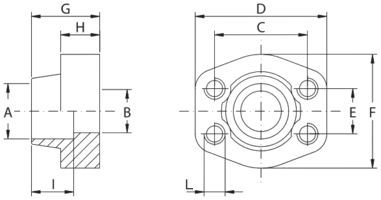

| dim | codice | A | B | C | D | E | F | G | H | I | L | L-unc | peso | WP |
| 1/2 | GFS080S20 | 20.3 | 13 | 38.1 | 57 | 17.48 | 46 | 36 | 16 | 19 | M8 | 5/16 | 0.26 | 345 |
| 3/4 | GFS100SA25 | 25.3 | 19 | 47.63 | 65 | 22.23 | 50 | 36 | 18 | 19 | M10 | 3/8 | 0.43 | 345 |
| 1 | GFS102SA30 | 30.3 | 25 | 52.37 | 70 | 26.19 | 55 | 38 | 18 | 19 | M10 | 3/8 | 0.5 | 276 |
| 1 1/4 | GFS104SA38 | 38.3 | 32 | 58.72 | 79 | 30.18 | 68 | 41 | 21 | 22 | M10 | 7/16 | 0.71 | 276 |
| 1 1/2 | GFS106SA50 | 50.5 | 38 | 69.85 | 93 | 35.71 | 78 | 45 | 25 | 24 | M12 | 1/2 | 1.12 | 207 |
SERIE 6000 |
| dim | codice | A | B | C | D | E | F | G | H | I | L | L-unc | peso | WP |
| 1/2 | GFS401SA20 | 20.3 | 13 | 40.49 | 57 | 18.24 | 46 | 36 | 16 | 19 | M8 | 5/16 | 0.26 | 414 |
| 3/4 | GFS402SA25 | 25.3 | 19 | 50.8 | 71 | 23.8 | 55 | 35 | 21 | 22 | M10 | 3/8 | 0.54 | 414 |
| 1 | GFS403SA30 | 30.3 | 25 | 57.15 | 81 | 27.76 | 65 | 42 | 25 | 22 | M12 | 7/16 | 0.82 | 414 |
| 1 1/4 | GFS404SA38 | 38.3 | 32 | 66.68 | 95 | 31.75 | 78 | 45 | 27 | 25 | M14 | 1/2 | 1.28 | 414 |
| 1 1/4 | GFS404SA38B26 | 38 | 26 | 66.68 | 95 | 31.75 | 78 | 45 | 27 | 25 | M14 | 1/2 | 1.32 | 414 |
| 1 1/4 | GFS404SA38B28 | 38 | 28 | 66.68 | 95 | 31.75 | 78 | 45 | 27 | 25 | M14 | 1/2 | 1.32 | 414 |
| 1 1/2 | GFS405SA50 | 50.5 | 38 | 79.38 | 112 | 36.5 | 94 | 50 | 30 | 28 | M16 | 5/8 | 1.94 | 414 |
