PBC srl - Oleodinamica Molteno

Controflange piatte a saldare di tasca

SERIE 3000

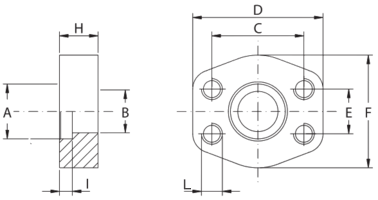

dim	codice	A	B	C	D	E	F	H	I	L	L-unc	peso	WP
1/2	GFC080S	22.5	15	38.1	56	17.48	46	14	3	M8	5/16	0.12	40
3/4	GFC100S	28.5	20	47.63	65	22.23	50	12	4	M10	3/8	0.2	40
1	GFC102S	35.5	29	52.37	70	26.19	55	12	4	N10	3/8	0.25	40
1 1/4	GFC104S	42.5	34	58.72	79	30.18	68	12	4	M10	7/16	0.28	40
1 1/2	GFC106S	49.0	42	69.85	93	35.71	78	15	4	M12	1/2	0.5	40
2	GFC108S	61.0	53	77.77	102	42.88	90	15	4	M12	1/2	0.59	40
2 1/2	GFC110S	77.0	64	88.9	114	50.8	105	15	4	M12	1/2	0.72	40
3	GFC112S	90.0	80	106.38	134	61.93	124	20	5	M16	5/8	1.25	40
3 1/2	GFC114S	103.0	93	120.65	152	69.85	136	20	5	M16	5/8	1.5	40
4	GFC116S	116.0	105	130.18	162	77.77	146	25	6	M16	5/8	2.15	40
5	GFC118S	141.0	126	152.4	190	92.08	170	28	8	M16	5/8	3	40
