PBC srl - Oleodinamica Molteno

Controflange a saldare di tasca

SERIE 3000

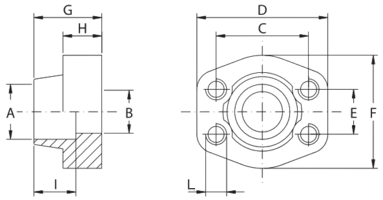

dim	codice	A	B	C	D	E	F	G	H	I	L	L-unc	peso	WP
1/2	GFS080S	21.6	13	38.1	57	17.48	46	36	16	19	M8	5/16	0.25	345
1/2	GFS080S038	17.5	13	38.1	57	17.48	46	36	16	19	M8	5/16	0.25	345
3/4	GFS100S	27.2	19	47.63	65	22.23	50	36	18	19	M10	3/8	0.39	345
1	GFS102S	34.0	25	52.37	70	26.19	55	38	18	19	M10	3/8	0.46	345
1 1/4	GFS104S	42.8	32	58.72	79	30.18	68	41	21	22	M10	7/16	0.71	276
1 1/2	GFS106S	48.6	38	69.85	93	35.71	78	45	25	24	M12	1/2	1.11	207
2	GFS108S	61.0	51	77.77	102	42.88	90	45	25	26	M12	1/2	1.19	207
2 1/2	GFS110S	76.6	63	88.9	114	50.8	105	50	25	30	M12	1/2	1.4	172
3	GFS112S	90.5	73	106.38	134	61.93	124	50	27	34	M16	5/8	2.15	138
3 1/2	GFS114S	103.0	89	120.65	152	69.85	136	48	27	34	M16	5/8	2.4	34
4	GFS116S	115.5	99	130.18	162	77.77	146	48	27	34	M16	5/8	2.85	34
5	GFS118S	142.0	120	152.4	184	92.08	180	50	28	28	M16	5/8	5.8	34

SERIE 6000

dim	codice	A	B	C	D	E	F	G	H	I	L	L-unc	peso	WP
1/2	GFS401S012	21.6	13	40.49	57	18.24	46	36	16	19	M8	5/16	0.26	414
1/2	GFS401S038	17.5	13	40.49	57	18.24	46	36	16	19	M8	5/16	0.29	414
3/4	GFS402S	27.2	19	50.8	71	23.8	55	35	21	22	M10	3/8	0.5	414
1	GFS403S	34.0	25	57.15	81	27.76	65	42	25	22	M12	7/16	0.76	414
1 1/4	GFS404S	42.8	32	66.68	95	31.75	78	45	27	25	M14	1/2	1.2	414
1 1/2	GFS405S	48.6	38	79.38	112	36.5	94	50	30	28	M16	5/8	1.94	414
2	GFS406S	61.0	51	96.82	134	44.45	114	65	37	24	M20	3/4	3.42	414
2 1/2	GFS507S	76.6	63	123.8	180	58.7	152	80	45	32	M24	-	6.75	414
3	GFS508S	90.5	73	152.4	208	71.4	178	90	55	30	M30	-	-	414
