PBC srl - Oleodinamica Molteno

Controflange filettate GAS

SERIE 3000

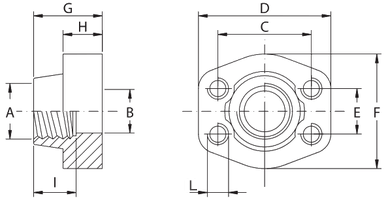

dim	codice	A	B	C	D	E	F	G	H	I	L	L-unc	peso	WP
1/2	GFS080G	1/2" GAS	13	38.1	57	17.48	46	36	16	19	M8	5/16	0.26	345
1/2	GFS080G038	3/8" GAS	13	38.1	57	17.48	46	36	16	19	M8	5/16	0.28	345
3/4	GFS100G	3/4" GAS	19	47.63	65	22.23	50	36	18	19	M10	3/8	0.41	345
3/4	GFS100G012	1/2" GAS	13	47.63	65	22.23	50	36	18	19	M10	3/8	0.44	345
1	GFS102G	1" GAS	25	52.37	70	26.19	55	38	18	22	M10	3/8	0.49	345
1	GFS102G034	3/4" GAS	19	52.37	70	26.19	55	35	21	19	M10	3/8	0.55	345
1 1/4	GFS104G	1"1/4 GAS	32	58.72	79	30.18	68	40	21	22	M10	7/16	0.71	276
1 1/4	GFS104G100	1" GAS	25	58.72	81	30.18	65	42	25	24	M10	7/16	0.85	276
1 1/2	GFS106G	1"1/2 GAS	38	69.85	93	35.71	78	45	25	24	M12	1/2	1.12	207
1 1/2	GFS106G114	1"1/4 GAS	32	69.85	95	35.71	78	45	27	24	M12	1/2	1.24	207
2	GFS108G	2" GAS	51	77.77	102	42.88	90	45	25	30	M12	1/2	1.24	207
2	GFS108G112	1"1/2 GAS	38	77.77	102	42.88	90	45	25	26	M12	1/2	1.59	207
2 1/2	GFS110G	2"1/2 GAS	63	88.9	114	50.8	105	50	25	30	M12	1/2	1.66	172
2 1/2	GFS110G200	2" GAS	51	88.9	114	50.8	105	50	25	30	M12	1/2	2.2	173
3	GFS112G	3" GAS	73	106.38	134	61.93	124	50	27	34	M16	5/8	2.37	138
3	GFS112G212	2"1/2 GAS	63	106.38	134	61.93	124	50	27	30	M16	5/8	2.65	138
3 1/2	GFS114G	3"1/2 GAS	89	120.65	152	69.85	136	48	27	34	M16	5/8	2.51	34
3 1/2	GFS114G300	3" GAS	73	120.65	152	69.85	136	48	27	34	M16	5/8	3.37	34
4	GFS116G	4" GAS	99	130.18	162	77.77	146	48	27	34	M16	5/8	2.87	34
4	GFS116G312	3"1/2 GAS	89	130.18	162	77.77	146	48	27	34	M16	5/8	3.39	34
5	GFS118G	5" GAS	120	152.4	184	92.08	180	50	28	30	M16	5/8	5.8	34

SERIE 6000

dim	codice	A	B	C	D	E	F	G	H	I	L	L-unc	peso	WP
1/2	GFS401G012	1/2" GAS	13	40.49	57	18.24	46	36	16	19	M8	5/16	0.26	414
1/2	GFS401G038	3/8" GAS	13	40.49	57	18.24	46	36	16	19	M8	5/16	0.29	414
3/4	GFS402G	3/4" GAS	19	50.8	71	23.8	55	35	21	22	M10	3/8	0.55	414
3/4	GFS402G012	1/2" GAS	13	50.8	71	23.8	55	35	21	22	M10	3/8	0.6	414
1	GFS403G	1" GAS	25	57.15	81	27.76	65	42	25	24	M12	7/16	0.87	414
1	GFS403G034	3/4" GAS	19	57.15	81	27.76	65	42	25	24	M12	7/16	0.9	414
1 1/4	GFS404G	1"1/4 GAS	32	66.68	95	31.75	78	45	27	25	M14	1/2	1.21	414
1 1/4	GFS404G100	1" GAS	25	66.68	95	31.75	78	45	27	25	M14	1/2	1.34	414
1 1/2	GFS405G	1"1/2 GAS	38	79.38	112	36.5	94	50	30	28	M16	5/8	1.9	414
1 1/2	GFS405G114	1"1/4 GAS	32	79.38	112	36.5	94	50	30	28	M16	5/8	2.03	414
2	GFS406G	2" GAS	51	96.82	134	44.45	114	65	37	30	M20	3/4	3.43	414
2	GFS406G112	1"1/2 GAS	38	96.82	134	44.45	114	65	37	30	M20	3/4	3.92	414
2 1/2	GFS507G	2"1/2 GAS	63	123.8	180	58.7	152	80	45	32	M24	-	6.98	414
3	GFS508G	3" GAS	73	152.4	208	71.4	178	90	55	40	M30	-	-	414
