PBC srl - Oleodinamica Molteno

Controflange a 90° a saldare di tasca

SERIE 3000

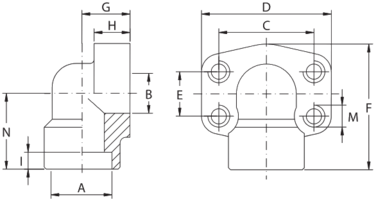

dim	codice	A	B	C	D	E	F	G	H	I	L	N	peso	WP
1/2	GFS08090S	21.6	13	38.1	54	17.48	60	20	16	10	M8	37	0.28	345
1/2	GFS08090S038	17.5	13	38.1	54	17.48	60	20	16	10	M8	37	0.29	345
3/4	GFS10090S	27.2	19	47.63	65	22.23	63	24	18	10	M10	38	0.45	345
1	GFS10290S	34.0	25	52.37	70	26.19	70	28	19	12	M10	43	0.56	345
1 1/4	GFS10490S	42.8	32	58.72	79	30.18	85	34	21	14	M10	51	0.89	276
1 1/2	GFS10690S	48.6	38	69.85	93	35.71	95	38	25	16	M12	56	1.18	207
2	GFS10890S	61.0	51	77.77	110	42.88	110	42	25	18	M12	65	2.06	207

SERIE 6000

dim	codice	A	B	C	D	E	F	G	H	I	L	N	peso	WP
1/2	GFS40190S012	21.6	13	40.49	54	18.24	60	20	16	10	M8	37	0.28	414
1/2	GFS40190S038	17.5	13	40.49	54	18.24	60	20	16	10	M8	37	0.29	414
3/4	GFS40290S	27.2	19	50.8	70	23.8	70	28	19	12	M10	43	0.69	414
1	GFS40390S	34.0	25	57.15	79	27.76	85	34	21	14	M12	51	1.11	414
1 1/4	GFS40490S	42.8	32	66.68	93	31.75	95	38	25	16	M14	56	1.45	414
1 1/2	GFS40590S	48.6	38	79.38	110	36.5	110	42	25	18	M16	65	2.75	414
2	GFS40690S	61.0	51	96.82	134	44.45	132	45	35	25	M20	75	3.85	414
