Doppie flange a saldare di tasca

SERIE 3000

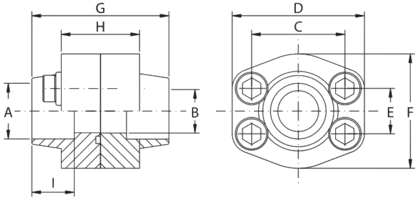

dim	codice	A	B	C	D	E	F	G	H	I	vite-m	vite-u	or	peso	WP
1/2	DFS080S	21.6	13	38.1	57	17.48	46	72	32	19	M8x30	5/16x1"1/4	4075	0.56	345
1/2	DFS080S038	17.5	13	38.1	57	17.48	46	72	32	19	M8x30	5/16x1"1/4	4075	0.61	345
3/4	DFS100S	27.2	19	47.63	65	22.23	50	72	36	19	M10x35	3/8x1"1/2	4100	0.88	345
1	DFS102S	34.0	25	52.37	70	26.19	55	76	36	19	M10x35	3/8x1"1/2	4131	1.03	345
1 1/4	DFS104S	42.8	32	58.72	79	30.18	68	82	42	22	N10x40	7/16x1"3/4	4150	1.5	276
1 1/2	DFS106S	48.6	38	69.85	93	35.71	78	90	50	24	M12x45	1/2x1"3/4	4187	1.65	207
2	DFS108S	61.0	51	77.77	102	42.88	90	90	50	26	M12x45	1/2x1"3/4	4225	2.56	207
2 1/2	DFS110S	76.6	63	88.9	114	50.8	105	100	50	30	M12x45	1/2x1"3/4	4275	3.13	172
3	DFS112S	90.5	73	106.38	134	61.93	124	100	54	34	M16x50	5/8x2"	4337	4.67	138
3 1/2	DFS114S	103.8	89	120.65	152	69.85	136	96	54	34	M16x50	5/8x2"	4387	5.18	34
4	DFS116S	115.5	99	130.18	162	77.77	146	96	54	34	M16x50	5/8x2"	4437	5.98	34
5	DFS118S	142.0	120	152.4	184	92.08	180	100	56	28	M16x50	5/8x2"	4537	12.12	34

SERIE 6000

dim	codice	A	B	C	D	E	F	G	H	I	vite-m	vite-u	or	peso	WP
1/2	DFS401S012	21.6	13	40.49	57	18.24	46	72	32	19	M8x30	5/16x1"1/4	4075	0.57	414
1/2	DFS401S038	17.5	13	40.49	57	18.24	46	72	32	19	M8x30	5/16x1"1/4	4075	0.62	414
3/4	DFS402S	27.2	19	50.8	71	23.8	55	70	42	22	M10x40	3/8x1"1/2	4100	1.14	414
1	DFS403S	34.0	25	57.15	81	27.76	65	84	50	22	M12x45	7/16x1"3/4	4131	1.76	414
1 1/4	DFS404S	42.8	32	66.68	95	31.75	78	90	54	25	M14x45	1/2x1"3/4	4150	2.62	414
1 1/2	DFS405S	48.6	38	79.38	112	36.5	94	100	60	28	M16x50	5/8x2"	4187	4.23	414
2	DFS406S	61.0	51	96.82	134	44.45	114	130	74	24	M20x70	3/4x2"1/2	4225	7.63	414
2 1/2	DFS507S	76.6	63	123.8	180	58.7	152	160	90	32	M24x80	-	4275	-	414
3	DFS508S	90.5	73	152.4	208	71.4	178	180	110	30	M30x100	-	4337	-	414
