Doppie flange filettate GAS e a saldare di tasca

SERIE 3000

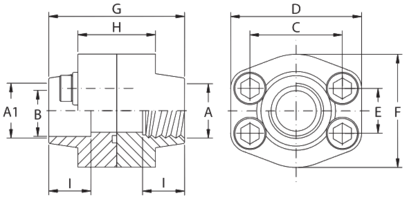

dim	codice	A	A1	B	C	D	E	F	G	H	I	vite-m	vite-u	or	peso	WP
1/2	DFS080F	1/2" GAS	21.6	13	38.1	57	17.48	46	72	32	19	M8x30	5/16x1"1/4	4075	0.57	345
1/2	DFS080F038	3/8" GAS	17.5	13	38.1	57	17.48	46	72	32	19	M8x30	5/16x1"1/4	4075	0.61	345
3/4	DFS100F	3/4" GAS	27.2	19	47.63	65	22.23	50	72	36	19	M10x35	3/8x1"1/2	4100	0.9	345
1	DFS102F	1" GAS	34	25	52.37	70	26.19	55	76	36	19	M10x35	3/8x1"1/2	4131	1.06	345
1 1/4	DFS104F	1"1/4 GAS	42.8	32	58.72	79	30.18	68	82	42	22	M10x40	7/16x1"3/4	4150	1.5	276
1 1/2	DFS106F	1"1/2 GAS	48.6	38	69.85	93	35.71	78	90	50	24	M12x45	1/2x1"3/4	4187	2.36	207
2	DFS108F	2" GAS	61	51	77.77	102	42.88	90	90	50	26/30	M12x45	1/2x1"3/4	4225	2.61	207
2 1/2	DFS110F	2"1/2 GAS	76.6	63	88.9	114	50.8	105	100	50	30	M12x45	1/2x1"3/4	4275	3.4	172
3	DFS112F	3" GAS	90.5	73	106.38	134	61.93	124	100	54	34	M16x50	5/8x2"	4337	4.89	138
3 1/2	DFS114F	3" 1/2 GAS	103	89	120.65	152	69.85	136	96	54	34	m16X50	5/8X2"	4387	5.29	34
4	DFS116F	4" GAS	115.5	99	130.18	162	77.77	146	96	54	34	M16x50	5/8x2"	4437	6	34
5	DFS118F	5" GAS	142	120	152.4	184	92.08	180	100	56	28/30	M16x50	5/8x2"	4537	12.12	34

SERIE 6000

dim	codice	A	A1	B	C	D	E	F	G	H	I	vite-m	vite-u	or	peso	WP
1/2	DFS401F012	1/2" GAS	21.6	13	40.49	57	18.24	46	72	32	19	M8x30	5/16x1"1/4	4075	0.57	414
1/2	DFS401F038	3/8" GAS	17.5	13	40.49	57	18.24	46	72	32	19	M8x30	5/16x1"1/4	4075	0.62	414
3/4	DFS402F	3/4" GAS	27.2	19	50.8	71	23.8	55	70	42	22	M10x40	3/8x1"1/2	4100	1.19	414
1	DFS403F	1" GAS	34	25	57.15	81	27.76	65	84	50	22	M12x45	7/16x1"3/4	4131	1.88	414
1"1/4	DFS404F	1"1/4 GAS	42.8	32	66.68	95	31.75	78	90	54	25	M14x45	1/2x1"3/4	4150	2.63	414
1 1/2	DFS405F	1"1/2 GAS	48.6	38	79.38	112	36.5	94	100	60	28	M16x50	5/8x2"	4187	4.19	414
2	DFS406F	2" GAS	61	51	96.82	134	44.45	114	130	74	24/30	M20x70	3/4x2"1/2	4225	7.64	414
2 1/2	DFS507F	2"1/2 GAS	76.6	63	123.8	180	58.7	152	160	70	32	M24x80	-	4275	-	414
3	DFS508F	3" GAS	90.5	73	152.4	208	71.4	178	180	110	30/10	M30x100	-	4337	-	414
