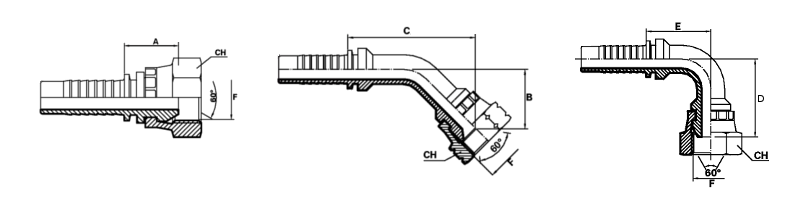

| DKR Femmina GAS svasata 60° |
| DKR-..-.. | DKR45-..-.. | DKR90-..-.. |
 | ||
| Per trovare il codice del prodotto desiderato, unire la sigla del raccordo (es. DKR, DKR90, DKOL45...) alla colonna "Codice PBC". | ||||||||
| Codice PBC | diametro tubo | filetto F | CH | A | B | C | D | E |
| ....-04-05 | 3/16" | 1/8" | 15 | 18 | 17 | 40 | 29 | 23 |
| ....-06-05 | 3/16" | 1/4" | 19 | 18 | 17 | 40 | 29 | 23 |
| ....-04-06 | 1/4" | 1/8" | 15 | 18 | 17 | 40 | 29 | 23 |
| ....-06-06 | 1/4" | 1/4" | 19 | 18 | 17 | 40 | 29 | 23 |
| ....-10-06 | 1/4" | 3/8" | 22 | 19 | 20 | 43 | 32 | 23 |
| ....-13-06 | 1/4" | 1/2" | 27 | 21 | 24 | 55 | 30 | 31.5 |
| ....-06-08 | 5/16" | 1/4" | 19 | 18 | 20 | 51 | 33.5 | 31.5 |
| ....-10-08 | 5/16" | 3/8" | 22 | 19 | 21 | 52 | 35.5 | 31.5 |
| ....-13-08 | 5/16" | 1/2" | 27 | 21 | 24 | 55 | 39 | 31.5 |
| ....-06-10 | 3/8" | 1/4" | 19 | 19 | 19 | 54 | 37 | 33 |
| ....-10-10 | 3/8" | 3/8" | 22 | 20 | 20 | 55 | 38 | 33 |
| ....-13-10 | 3/8" | 1/2" | 27 | 21 | 23 | 58 | 42 | 33 |
| ....-10-13 | 1/2" | 3/8" | 22 | 20 | 20 | 63 | 43 | 39 |
| ....-13-13 | 1/2" | 1/2" | 27 | 22 | 23 | 65 | 45 | 39 |
| ....-16-13 | 1/2" | 5/8" | 28 | 22 | 23 | 65 | 45 | 39 |
| ....-19-13 | 1/2" | 3/4" | 32 | 24 | 21 | 66 | 51 | 39 |
| ....-13-16 | 5/8" | 1/2" | 27 | 22 | 25 | 63 | 54 | 49 |
| ....-16-16 | 5/8" | 5/8" | 28 | 23 | 25 | 64 | 54 | 49 |
| ....-19-16 | 5/8" | 3/4" | 32 | 24 | 26 | 64 | 56 | 49 |
| ....-13-19 | 3/4" | 1/2" | 27 | 22.5 | 28 | 62 | 56 | 53.5 |
| ....-16-19 | 3/4" | 5/8" | 28 | 24 | 29 | 63 | 56 | 53.5 |
| ....-19-19 | 3/4" | 3/4" | 32 | 25 | 29 | 63 | 59 | 53.5 |
| ....-25-19 | 3/4" | 1" | 38 | 26 | 31 | 65 | 65 | 53.5 |
| ....-19-25 | 1" | 3/4" | 32 | 26 | 39 | 88 | 72 | 68.5 |
| ....-25-25 | 1" | 1" | 38 | 27 | 41 | 90 | 72 | 73 |
| ....-32-25 | 1" | 1 1/4" | 50 | 30 | 44 | 93 | 80 | 73 |
| ....-32-32 | 1 1/4" | 1 1/4" | 50 | 30 | 44 | 102 | 93 | 89 |
| ....-38-32 | 1 1/4" | 1 1/2" | 55 | 32 | 45 | 103 | 98.5 | 89 |
| ....-38-38 | 1 1/2" | 1 1/2" | 55 | 32 | 45 | 118 | 114 | 101 |
