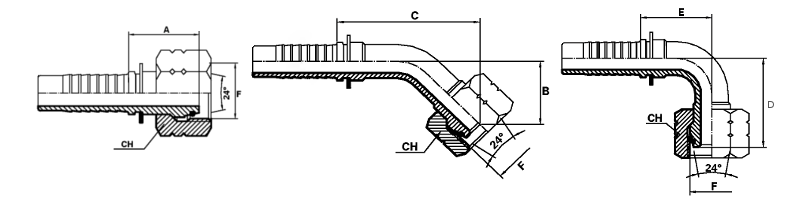

| DKOS Femmina metrica serie pesante O-Ring svasata 24° |
| DKOS-..-.. | DKOS45-..-.. | DKOS90-..-.. |
 | ||
| Per trovare il codice del prodotto desiderato, unire la sigla del raccordo (es. DKR, DKR90, DKOL45...) alla colonna "Codice PBC". | |||||||||
| Codice PBC | diametro tubo | filetto F | T | CH | A | B | C | D | E |
| ....-08S-3/16" | 3/16" | M16x1.5 | 8 | 19 | 25.5 | 15 | 37 | 31.5 | 29.5 |
| ....-06S-1/4" | 1/4" | M14x1.5 | 6 | 17 | 25.5 | 17 | 40 | 31.5 | 29.5 |
| ....-08S-1/4" | 1/4" | M16x1.5 | 8 | 19 | 26 | 17 | 50 | 31.5 | 29.5 |
| ....-10S-1/4" | 1/4" | M18x1.5 | 10 | 22 | 26 | 17 | 48.5 | 32.5 | 29 |
| ....-12S-1/4" | 1/4" | M20x1.5 | 12 | 24 | 26 | 17 | 48.5 | 30.5 | 27 |
| ....-10S-5/16" | 5/16" | M18x1.5 | 10 | 22 | 26.5 | 17 | 52.5 | 32.5 | 31 |
| ....-12S-5/16" | 5/16" | M20x1.5 | 12 | 24 | 26 | 20 | 50 | 37 | 29 |
| ....-10S-3/8" | 3/8" | M18x1.5 | 10 | 22 | 26.5 | 20 | 55 | 38 | 33 |
| ....-12S-3/8" | 3/8" | M20x1.5 | 12 | 24 | 26.5 | 17 | 57 | 37.5 | 35.5 |
| ....-14S-3/8" | 3/8" | M22x1.5 | 14 | 27 | 27 | 19 | 59 | 42 | 34 |
| ....-14S-1/2" | 1/2" | M22x1.5 | 14 | 27 | 27.5 | 22 | 65 | 44 | 39.5 |
| ....-16S-1/2" | 1/2" | M24x1.5 | 16 | 30 | 32 | 22 | 66.5 | 45 | 39.5 |
| ....-20S-5/8" | 5/8" | M30x2 | 20 | 36 | 37 | 26 | 64.5 | 56 | 48.5 |
| ....-20S-3/4" | 3/4" | M30x2 | 20 | 36 | 37.5 | 27 | 64 | 59 | 56.5 |
| ....-25S-3/4" | 3/4" | M36x2 | 25 | 46 | 38.5 | 28 | 70 | 59 | 56.5 |
| ....-25S-1" | 1" | M36x2 | 25 | 46 | 39.5 | 38 | 88.5 | 75 | 73 |
| ....-30S-1" | 1" | M42x2 | 30 | 50 | 40.5 | 38 | 89 | 75 | 73 |
| ....-30S-1.1/4" | 1 1/4" | M42x2 | 30 | 50 | 41.5 | 35 | 104.5 | 86 | 92 |
| ....-38S-1.1/4" | 1 1/4" | M52x2 | 38 | 60 | 47 | 35 | 104.5 | 86 | 92 |
| ....-38S-1.1/2" | 1 1/2" | M52x2 | 38 | 60 | 47 | 45 | 119 | 94 | 99 |
