| DKJ dkj |

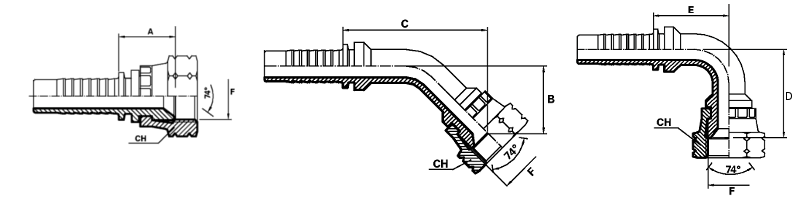

| DKJ-..-.. | DKJ45-..-.. | DKJ90-..-.. |
 | ||
| Per trovare il codice del prodotto desiderato, unire la sigla del raccordo (es. DKR, DKR90, DKOL45...) alla colonna "Codice PBC". | ||||||||
| Codice PBC | diametro tubo | filetto F | CH | A | B | C | D | E |
| ....-04-05 | 3/16" | 7/16" | 15 | 15 | 15 | 38 | 26 | 23 |
| su richiesta | 3/16" | 1/2" | 17 | 15 | 17 | 40 | 27 | 23 |
| ....-04-06 | 1/4" | 7/16" | 15 | 15 | 15 | 38 | 26 | 23 |
| ....-06-06 | 1/4" | 1/2" | 17 | 16 | 17 | 40 | 27 | 23 |
| ....-08-06 | 1/4" | 9/16" | 19 | 16 | 16.5 | 39.5 | 27 | 23 |
| su richiesta | 5/16" | 1/2" | 17 | 16 | 17 | 40 | 32 | 31.5 |
| ....-08-08 | 5/16" | 9/16" | 19 | 16 | 18.5 | 49.5 | 32 | 31.5 |
| su richiesta | 5/16" | 5/8" | 22 | 17 | 19 | 50 | 32.5 | 31.5 |
| ....-10-08 | 5/16" | 3/4" | 24 | 17 | 19.5 | 50.5 | 32.5 | 31.5 |
| su richiesta | 3/8" | 9/16" | 19 | 16.5 | 18 | 53 | 35 | 33 |
| su richiesta | 3/8" | 5/8" | 22 | 17 | 19 | 54 | 35.5 | 33 |
| ....-10-10 | 3/8" | 3/4" | 24 | 17 | 19 | 54 | 36.5 | 33 |
| ....-13-10 | 3/8" | 7/8" | 27 | 18.5 | 21 | 56 | 39.5 | 33 |
| ....-10-13 | 1/2" | 3/4" | 24 | 18 | 20 | 62 | 41 | 39 |
| ....-13-13 | 1/2" | 7/8" | 27 | 19 | 21 | 63 | 42.5 | 39 |
| ....-19-13 | 1/2" | 1 1/16" | 32 | 22 | 22 | 64 | 50 | 39 |
| ....-13-16 | 5/8" | 7/8" | 27 | 19.5 | 22 | 60 | 50 | 49 |
| ....-19-16 | 5/8" | 1 1/16" | 32 | 22.5 | 25 | 63 | 55 | 49 |
| ....-13-19 | 3/4" | 7/8" | 27 | 20 | 29 | 62 | 58 | 53.5 |
| ....-19-19 | 3/4" | 1 1/16" | 32 | 23 | 29 | 62 | 58 | 53.5 |
| su richiesta | 3/4" | 1 3/16" | 36 | 23 | 29 | 63 | 61 | 53.5 |
| ....-25-19 | 3/4" | 1 5/16" | 41 | 23 | 29 | 63 | 62.5 | 53.5 |
| su richiesta | 1" | 1 1/16" | 32 | 24 | 39.5 | 100 | 80 | 69 |
| ....-25-25 | 1" | 1 5/16" | 41 | 24.5 | 39.5 | 88.5 | 69.5 | 73 |
| ....-32-25 | 1" | 1 5/8" | 50 | 28.5 | 38.5 | 89.5 | 78.5 | 73 |
| ....-32-32 | 1 1/4" | 1 5/8" | 50 | 29 | 44 | 101 | 91.5 | 89 |
| su richiesta | 1 1/4" | 1 7/8" | 55 | 31 | 45 | 103 | 99 | 89 |
| ....-38-38 | 1 1/2" | 1 7/8" | 55 | 31 | 45 | 118 | 112.5 | 101 |
