PBC srl - Oleodinamica Molteno

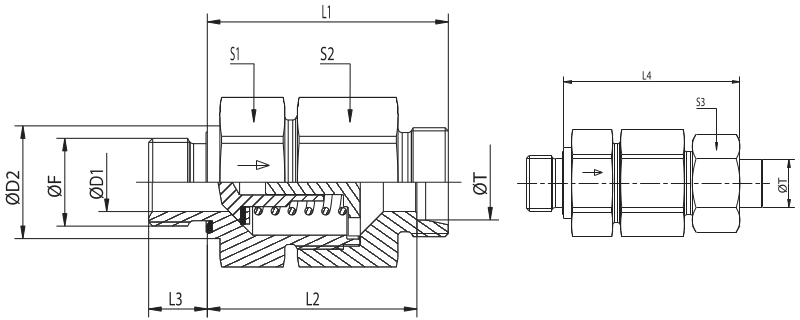

E833 Valvola di non ritorno - flusso verso il tubo Filettatura GAS cilindrica

serie	codice	T	F	S1	S2	S3	D1	D2	L1	L2	L3	L4	pressione
L	E833-8-106L	6	G1/8	17	17	14	3.5	14	35	28	8	43	PN 400
L	E833-8-108L	8	G1/4	19	19	17	5.5	19	37	30	12	45	PN 400
L	E833-8-110L	10	G1/4	22	24	19	7.5	19	45.5	38.5	12	53.5	PN 400
L	E833-8-112L	12	G3/8	27	30	22	9.5	22	49.5	42.5	12	57.5	PN 400
L	E833-8-115L	15	G1/2	27	32	27	11.5	27	52.5	45.5	14	60.5	PN 315
L	E833-8-118L	18	G1/2	36	36	32	14	27	57.5	50	14	66.5	PN 250
L	E833-8-122L	22	G3/4	41	46	36	18	32	62.5	55	16	71.5	PN 250
L	E833-8-128L	28	G1	50	55	41	23	40	70.5	63	18	79.5	PN 160
L	E833-8-135L	35	G1 1/4	60	60	50	29	50	79.5	69	20	90.5	PN 160
L	E833-8-142L	42	G1 1/2	65	70	60	29	55	80	69	22	92	PN 160
S	E833-9-106S	6	G1/4	19	19	17	3.5	19	38.5	31.5	12	46.5	PN 420
S	E833-9-108S	8	G1/4	19	19	19	3.5	19	38.5	31.5	12	46.5	PN 420
S	E833-9-110S	10	G3/8	22	24	22	5.5	22	45.5	38	12	54.5	PN 420
S	E833-9-112S	12	G3/8	24	27	24	7.5	22	48.5	41	12	57.5	PN 420
S	E833-9-114S	14	G1/2	27	32	27	9.5	27	52.5	44.5	14	62.5	PN 420
S	E833-9-116S	16	G1/2	32	36	30	11.5	27	56.5	48	14	66.5	PN 420
S	E833-9-120S	20	G3/4	38	41	36	15	32	62.5	52	16	73.5	PN 250
S	E833-9-125S	25	G1	46	50	46	19	40	66.5	54.5	18	78.5	PN 250
S	E833-9-130S	30	G1 1/4	55	60	50	24	50	77.5	64	20	90.5	PN 250
S	E833-9-138S	38	G1 1/2	65	70	60	29	55	85.5	69.5	22	100.5	PN 250
