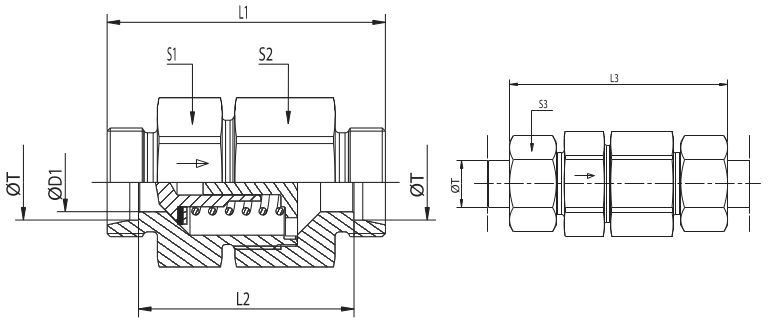

E831 Valvola di non ritorno intermedia

serie	codice	T	S1	S2	S3	D1	L1	L2	L3	pressione
L	E831-8-06L	6	17	17	14	3.5	43	29	59	PN 400
L	E831-8-08L	8	19	19	17	5.5	44	30	60	PN 400
L	E831-8-10L	10	22	24	19	7.5	54.5	40.5	70.5	PN 400
L	E831-8-12L	12	27	30	22	9.5	57.5	43.5	73.5	PN 400
L	E831-8-15L	15	27	32	27	11.5	61.5	47.5	77.5	PN 315
L	E831-8-18L	18	36	36	32	14	66.5	51.5	84.5	PN 250
L	E831-8-22L	22	41	46	36	18	76.5	61.5	94.5	PN 250
L	E831-8-28L	28	50	55	41	23	84.5	69.5	102.5	PN 160
L	E831-8-35L	35	60	60	50	29	95.5	74.5	117.5	PN 160
L	E831-8-42L	42	65	70	60	29	96	74	120	PN 160
S	E831-9-06S	6	17	19	17	3.5	48.5	34.5	64.5	PN 420
S	E831-9-08S	8	17	19	19	3.5	48.5	34.5	64.5	PN 420
S	E831-9-10S	10	22	24	22	5.5	55.5	40.5	73.5	PN 420
S	E831-9-12S	12	24	27	24	7.5	57.5	42.5	75.5	PN 420
S	E831-9-14S	14	27	32	27	9.5	63.5	47.5	83.5	PN 420
S	E831-9-16S	16	32	36	30	11.5	67.5	50.5	87.5	PN 420
S	E831-9-20S	20	38	41	36	15	75.5	54.5	97.5	PN 250
S	E831-9-25S	25	46	50	46	19	82.5	58.5	106.5	PN 250
S	E831-9-30S	30	55	60	50	24	96.5	69.5	122.5	PN 250
S	E831-9-38S	38	65	70	60	29	107.5	75.5	137.5	PN 250
