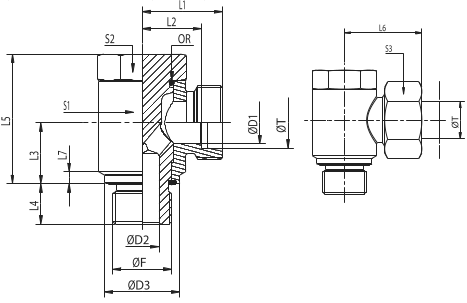

E731 Orientabile ad occhiello con guarnizione e O-Ring Filettatura metrica cilindrica

serie	codice	T	F	S1	S2	S3	D1	D2	D3	L1	L2	L3	L4	L5	L6	L7	pressione
LL	E731-7-306LL	6	M10x1	17	17	12	4.5	4	14.5	19	13.5	10.5	8	23.5	25	3	PN 100
LL	E731-7-308LL	8	M10x1	17	17	14	6	4	14.5	19	13.5	10.5	8	23.5	25	3	PN 100
L	E731-8-306L	6	M10x1	17	17	14	4	4	14.5	19	12	10.5	8	23.5	27	3	PN 315
L	E731-8-308L	8	M12x1.5	22	19	17	6	6	17.5	21.5	14.5	14	12	29	29.5	3	PN 315
L	E731-8-310L	10	M14x1.5	22	19	19	8	7	18.5	22.5	15.5	14	12	30	30.5	3	PN 315
L	E731-8-312L	12	M18x1.5	27	24	22	10	9	23.5	25	18	16.5	12	35	33	3	PN 315
L	E731-8-312L	12	M16x1.5	27	24	22	10	9	22.5	25	18	16.5	12	35	33	3	PN 315
L	E731-8-315L	15	M18x1.5	32	27	27	12	11	23.5	28.5	21.5	21.5	12	46	36.5	3	PN 315
L	E731-8-318L	18	M22x1.5	32	27	32	15	12	27.5	28.5	21	21.5	14	46	37.5	3	PN 315
L	E731-8-322L	22	M26x1.5	41	36	36	19	16	31.5	35	27.5	24	16	52	44	3	PN 160
L	E731-8-328L	28	M33x2	50	46	41	24	20	39.5	39.5	32	30.5	18	64	48.5	3.5	PN 160
L	E731-8-335L	35	M42x2	60	50	50	30	26	49.5	46.5	36	35.5	20	75	57.5	3.5	PN 160
L	E731-8-342L	42	M48x2	70	60	60	36	33	55.5	51.5	40.5	40.5	22	88	63.5	3.5	PN 160
S	E731-9-306S	6	M12x1.5	22	19	17	4	6	17.5	23.5	16.5	14	12	29	31.5	3	PN 400
S	E731-9-308S	8	M14x1.5	22	19	19	5	7	18.5	23.5	16.5	14	12	30	31.5	3	PN 400
S	E731-9-310S	10	M16x1.5	27	24	22	7	9	22.5	26	18.5	16.5	12	35	35	3	PN 400
S	E731-9-312S	12	M18x1.5	27	24	24	8	9	23.5	26	18.5	16.5	12	35	35	3	PN 400
S	E731-9-314S	14	M20x1.5	30	27	27	10	11	25.5	30.5	22.5	21.5	14	46	40.5	3	PN 400
S	E731-9-316S	16	M22x1.5	30	27	30	12	12	27.5	30.5	22	21.5	14	46	40.5	3	PN 315
S	E731-9-320S	20	M27x2	41	36	36	16	16	32.5	37	26.5	24	16	52	48	3	PN 315
S	E731-9-325S	25	M33x2	50	46	46	20	20	39.5	43.5	31.5	30.5	18	64	55.5	3.5	PN 250
S	E731-9-330S	30	M42x2	60	50	50	25	26	49.5	50.5	37	35.5	20	75	63.5	3.5	PN 160
S	E731-9-338S	38	M48x2	70	60	60	32	33	55.5	57.5	41.5	40.5	22	88	72.5	3.5	PN 160
