E731 Orientabile ad occhiello con guarnizione e O-Ring Filettatura GAS cilindrica

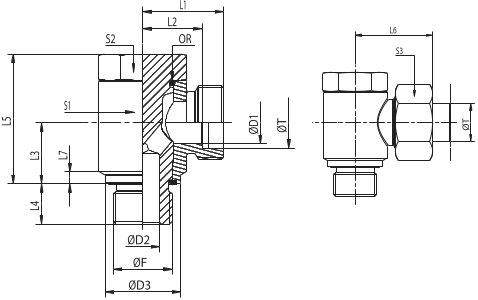

serie	codice	T	F	S1	S2	S3	D1	D2	D3	L1	L2	L3	L4	L5	L6	L7	pressione
LL	E731-7-104LL	4	G1/8	17	17	10	3	4	14.5	18	14	10.5	8	23.5	24	3	PN 100
LL	E731-7-106LL	6	G1/8	17	17	12	4.5	4	14.5	19	13.5	10.5	8	23.5	25	3	PN 100
LL	E731-7-108LL	8	G1/8	17	17	14	6	4	14.5	19	13.5	10.5	8	23.5	25	3	PN 100
L	E731-8-106L	6	G1/8	17	17	14	4	4	14.5	19	12	10.5	8	23.5	27	3	PN 315
L	E731-8-108L	8	G1/4	22	19	17	6	7	19	21.5	14.5	14	12	29	29.5	3	PN 315
L	E731-8-110L	10	G1/4	22	19	19	8	7	19	22.5	15.5	14	12	29	30.5	3	PN 315
L	E731-8-112L	12	G1/2	32	27	22	10	12	27	27.5	20.5	21.5	14	46	35.5	3	PN 315
L	E731-8-112L	12	G1/4	27	19	22	10	7	19	25	18	16.5	12	34	33	3	PN 315
L	E731-8-112L	12	G3/8	27	24	22	10	9	22.5	25	18	16.5	12	35	33	3	PN 315
L	E731-8-115L	15	G1/2	32	27	27	12	12	27	28.5	21.5	21.5	14	46	36.5	3	PN 315
L	E731-8-118L	18	G1/2	32	27	32	15	12	27	28.5	21	21.5	14	46	37.5	3	PN 315
L	E731-8-122L	22	G3/4	41	36	36	19	16	32.5	35	27.5	24	16	52	44	3	PN 160
L	E731-8-128L	28	G1	50	46	41	24	20	40	39.5	32	30.5	18	64	48.5	3.5	PN 160
L	E731-8-135L	35	G1 1/4	60	50	50	30	26	50	46.5	36	35.5	20	75	57.5	3.5	PN 160
L	E731-8-142L	42	G1 1/2	70	60	60	36	33	55.5	51.5	40.5	40.5	22	88	63.5	3.5	PN 160
S	E731-9-106S	6	G1/4	22	19	17	4	7	19	23.5	16.5	14	12	29	31.5	3	PN 400
S	E731-9-108S	8	G1/4	22	19	19	5	7	19	23.5	16.5	14	12	29	31.5	3	PN 400
S	E731-9-110S	10	G3/8	27	24	22	7	9	22.5	26	18.5	16.5	12	35	35	3	PN 400
S	E731-9-112S	12	G3/8	27	24	24	8	9	22.5	26	18.5	16.5	12	35	35	3	PN 400
S	E731-9-114S	14	G1/2	30	27	27	10	12	27	30.5	22.5	21.5	14	46	40.5	3	PN 400
S	E731-9-116S	16	G1/2	30	27	30	12	12	27	30.5	22	21.5	14	46	40.5	3	PN 315
S	E731-9-120S	20	G3/4	41	36	36	16	16	32.5	37	26.5	24	16	52	48	3	PN 315
S	E731-9-125S	25	G1	50	46	46	20	20	40	43.5	31.5	30.5	18	64	55.5	3.5	PN 250
S	E731-9-130S	30	G1 1/4	60	50	50	25	26	50	50.5	37	35.5	20	75	63.5	3.5	PN 160
S	E731-9-138S	38	G1 1/2	70	60	60	32	33	55.5	57.5	41.5	40.5	22	88	72.5	3.5	PN 160
