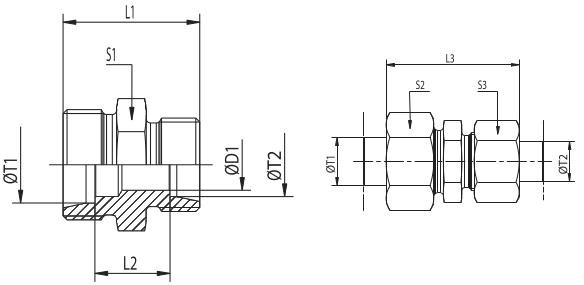

E221R Raccordo intermedio di riduzione dritto | |
serie | codice | T | T2 | S1 | S2 | S3 | D1 | L1 | L2 | L3 | pressione |
L | E221R-8-08L-06L | 8 | 06 | 14 | 17 | 14 | 4 | 25 | 11 | 41 | PN 500 |
L | E221R-8-10L-06L | 10 | 06 | 17 | 19 | 14 | 4 | 26 | 12 | 42 | PN 500 |
L | E221R-8-10L-08L | 10 | 08 | 17 | 19 | 17 | 6 | 26 | 12 | 42 | PN 500 |
L | E221R-8-12L-08L | 12 | 08 | 19 | 22 | 17 | 6 | 27 | 13 | 43 | PN 400 |
L | E221R-8-12L-10L | 12 | 10 | 19 | 22 | 19 | 8 | 28 | 14 | 44 | PN 400 |
L | E221R-8-15L-10L | 15 | 10 | 24 | 27 | 19 | 8 | 29 | 15 | 45 | PN 400 |
L | E221R-8-15L-12L | 15 | 12 | 24 | 27 | 22 | 10 | 29 | 15 | 45 | PN 400 |
L | E221R-8-18L-15L | 18 | 15 | 27 | 32 | 27 | 12 | 31 | 16.5 | 48 | PN 400 |
L | E221R-8-18L-12L | 18 | 12 | 27 | 32 | 22 | 10 | 30 | 15.5 | 47 | PN 400 |
L | E221R-8-22L-15L | 22 | 15 | 32 | 36 | 27 | 12 | 33 | 18.5 | 50 | PN 250 |
L | E221R-8-22L-18L | 22 | 18 | 32 | 36 | 32 | 15 | 33 | 18 | 51 | PN 250 |
L | E221R-8-28L-18L | 28 | 18 | 41 | 41 | 32 | 15 | 34 | 19 | 52 | PN 250 |
L | E221R-8-28L-22L | 28 | 22 | 41 | 41 | 36 | 19 | 36 | 21 | 54 | PN 250 |
L | E221R-8-35L-22L | 35 | 22 | 46 | 50 | 36 | 19 | 39 | 21 | 59 | PN 250 |
L | E221R-8-35L-28L | 35 | 28 | 46 | 50 | 41 | 24 | 39 | 21 | 59 | PN 250 |
L | E221R-8-42L-35L | 42 | 35 | 55 | 60 | 50 | 30 | 43 | 21.5 | 66 | PN 250 |
S | E221R-9-08S-06S | 8 | 06 | 17 | 19 | 17 | 4 | 32 | 18 | 48 | PN 630 |
S | E221R-9-10S-06S | 10 | 06 | 19 | 22 | 17 | 4 | 32 | 17.5 | 49 | PN 630 |
S | E221R-9-10S-08S | 10 | 08 | 19 | 22 | 19 | 5 | 32 | 17.5 | 49 | PN 630 |
S | E221R-9-12S-06S | 12 | 06 | 22 | 24 | 17 | 4 | 34 | 19.5 | 51 | PN 630 |
S | E221R-9-12S-08S | 12 | 08 | 22 | 24 | 19 | 5 | 34 | 19.5 | 51 | PN 630 |
S | E221R-9-12S-10S | 12 | 10 | 22 | 24 | 22 | 7 | 34 | 19 | 52 | PN 630 |
S | E221R-9-14S-10S | 14 | 10 | 24 | 27 | 22 | 7 | 36 | 20.5 | 55 | PN 630 |
S | E221R-9-14S-12S | 14 | 12 | 24 | 27 | 24 | 8 | 36 | 20.5 | 55 | PN 630 |
S | E221R-9-16S-14S | 16 | 14 | 27 | 30 | 27 | 10 | 38 | 21.5 | 58 | PN 420 |
S | E221R-9-16S-12S | 16 | 12 | 27 | 30 | 24 | 8 | 36 | 20 | 55 | PN 420 |
S | E221R-9-20S-12S | 20 | 12 | 32 | 36 | 24 | 8 | 40 | 22 | 60 | PN 420 |
S | E221R-9-20S-16S | 20 | 16 | 32 | 36 | 30 | 12 | 42 | 23 | 63 | PN 420 |
S | E221R-9-25S-16S | 25 | 16 | 41 | 46 | 30 | 12 | 46 | 25.5 | 68 | PN 420 |
S | E221R-9-25S-20S | 25 | 20 | 41 | 46 | 36 | 16 | 48 | 25.5 | 71 | PN 420 |
S | E221R-9-30S-20S | 30 | 20 | 46 | 50 | 36 | 16 | 50 | 26 | 74 | PN 420 |
S | E221R-9-30S-25S | 30 | 25 | 46 | 50 | 46 | 20 | 52 | 26.5 | 77 | PN 420 |
S | E221R-9-38S-30S | 38 | 30 | 55 | 60 | 50 | 25 | 59 | 29.5 | 87 | PN 315 |
